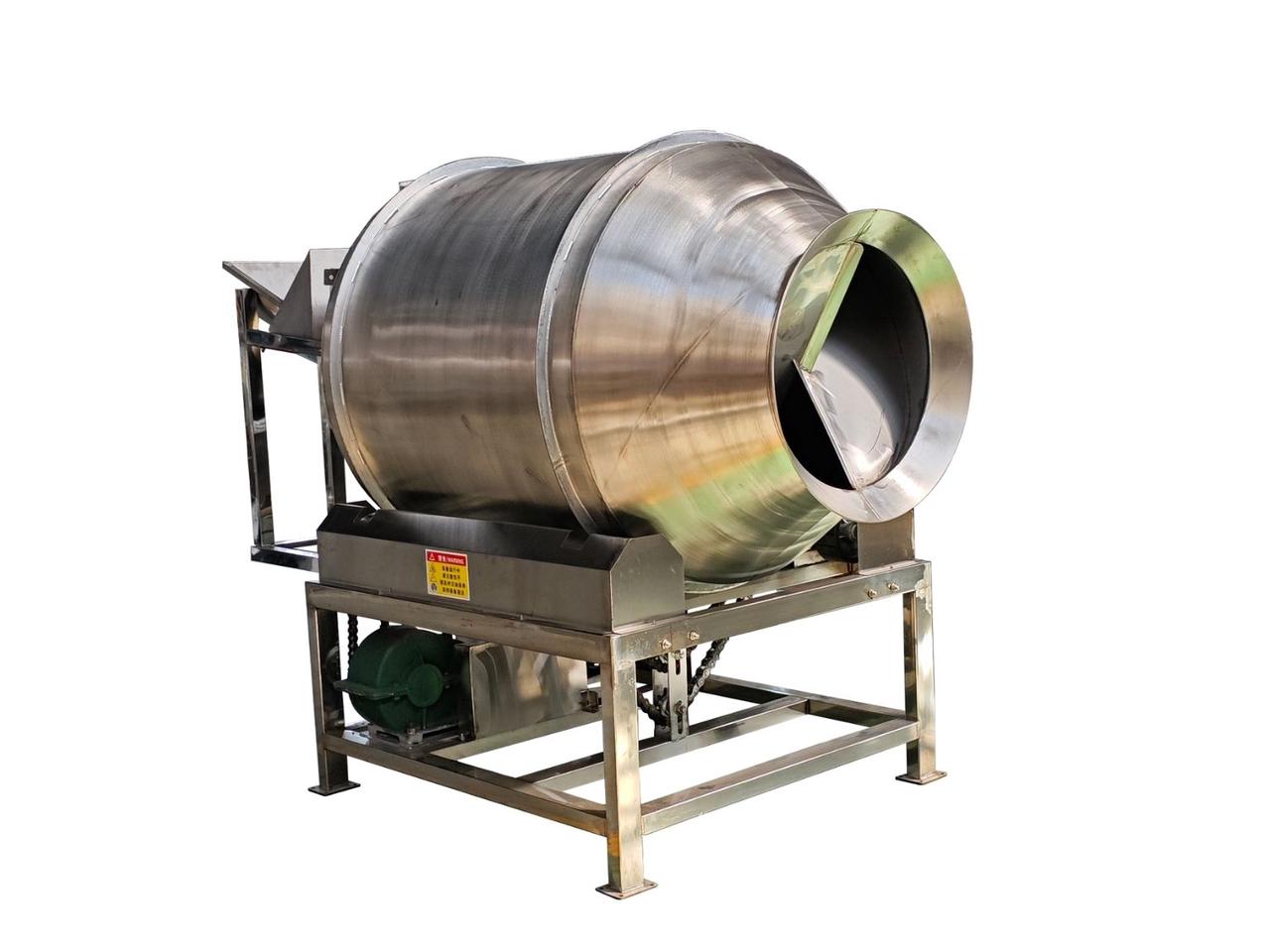

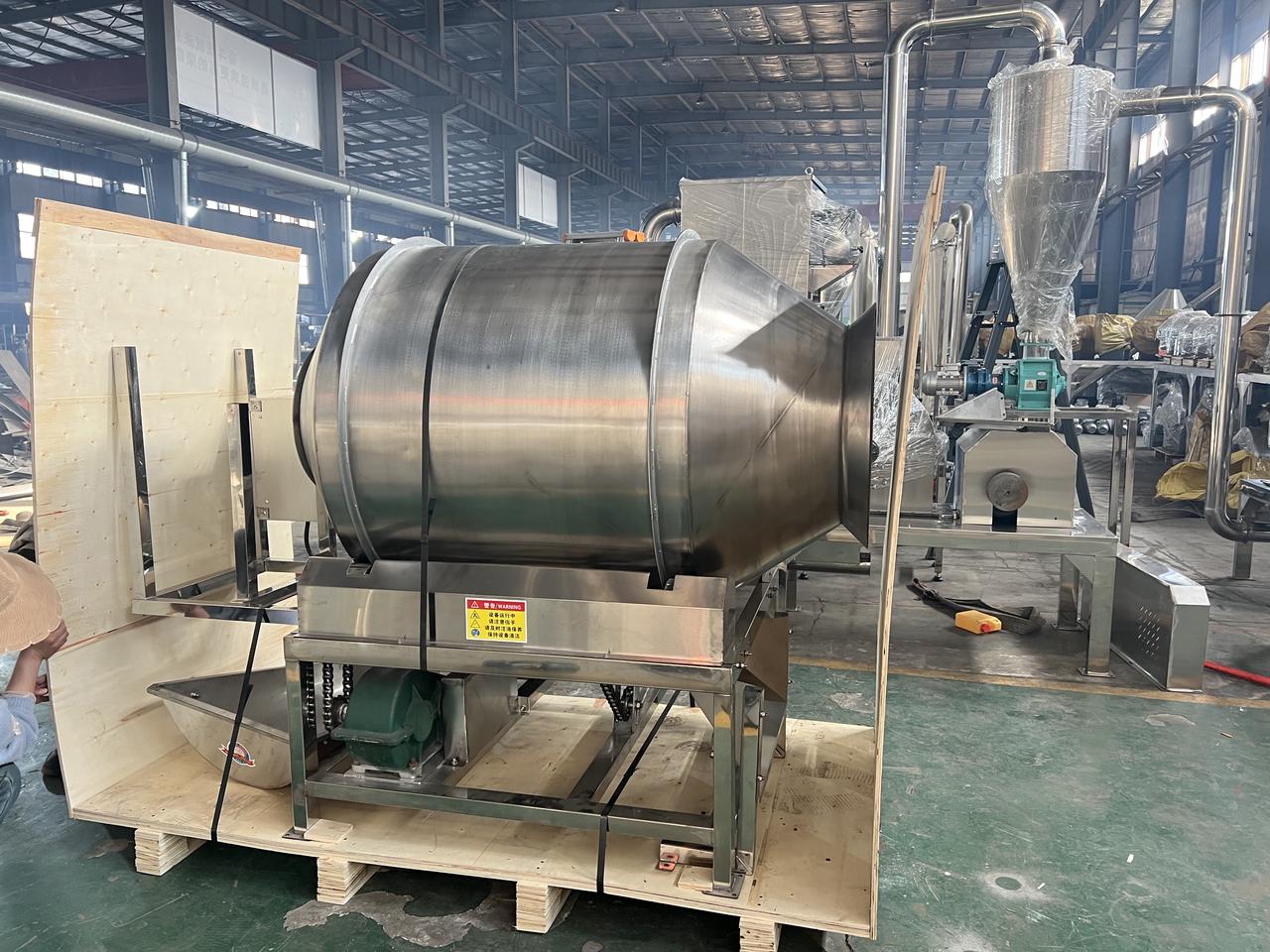

Rotary Drum Granule Mixer: High-Efficiency Equipment for Granular Material Blending

In the production processes of food, pharmaceutical, chemical, and feed industries, uniform mixing of granular materials is crucial for product quality and consistency. The Rotary Drum Granule Mixer, with its advantages of simple structure, stable operation, and high mixing uniformity, is widely used in various granular material processing production lines, delivering reliable performance across diverse industrial applications.

Working Principle & Design

• Tumbling Action Mixing:
  The drum rotates at an optimal speed (typically 15-25 RPM) causing granular materials to cascade and tumble in a three-dimensional mixing pattern. This gentle action ensures thorough blending without material degradation or segregation.

• Cylindrical Drum Design:
  The horizontal cylindrical chamber provides maximum mixing volume efficiency. Internal baffles and lifters can be customized to enhance mixing action for specific material characteristics and improve blend uniformity.

• Variable Speed Control:
  Precision speed control allows optimization for different material densities, particle sizes, and mixing requirements. Lower speeds prevent attrition of fragile materials while higher speeds accelerate mixing of dense products.

Key Technical Features

Superior Construction

• Heavy-Duty Frame: Robust steel construction with anti-vibration mounting
• Precision Bearings: High-capacity roller bearings for smooth, quiet operation
• Drive System: Variable frequency drive with overload protection
• Access Ports: Large inspection doors and sampling ports for process monitoring

Material Compatibility

• Stainless Steel Options: 304/316L construction for food and pharmaceutical applications
• Coating Systems: Specialized coatings for chemical resistance and easy cleaning
• Sanitary Design: Smooth surfaces and easy-clean construction for hygienic industries
• Explosion-Proof: ATEX-certified designs available for hazardous materials

Advanced Mixing Performance

Mixing Efficiency

• Uniformity Achievement: 95-99% mixing uniformity in 10-30 minutes
• Gentle Handling: Minimal particle breakage and dust generation
• Scalable Design: Consistent performance from lab scale to production volumes
• Batch Reproducibility: Precise control ensures consistent results batch after batch

Capacity Range

• Laboratory: 1-50L for R&D and quality control testing
• Pilot Scale: 100-1000L for process development and small production
• Production: 2000-50000L for commercial manufacturing operations
• Custom Designs: Tailored solutions for specific industry requirements

Industry Applications

Pharmaceutical Industry

• Tablet Granulation: Blending of granules before compression
• Capsule Filling: Uniform mixing of active and excipient granules
• Powder Blending: Pre-granulation mixing of pharmaceutical powders
• Coating Applications: Uniform distribution of coating materials

Food Processing

• Cereal Manufacturing: Mixing of breakfast cereals and snack foods
• Spice Blending: Uniform distribution of spice granules and seasonings
• Pet Food Production: Blending of nutritional pellets and supplements
• Confectionery: Mixing of sugar granules, chocolate chips, and additives

Chemical & Feed Industries

Chemical Processing

• Catalyst Preparation: Uniform blending of catalyst supports and active materials
• Polymer Compounding: Mixing of plastic pellets with additives and colorants
• Fertilizer Blending: Uniform distribution of NPK and micronutrient granules
• Detergent Manufacturing: Blending of cleaning agent granules and enzymes

Animal Feed Production

• Complete Feed Mixing: Blending of grains, protein meals, and supplements
• Premix Preparation: Uniform distribution of vitamins and minerals
• Aquaculture Feeds: Specialized mixing for fish and shrimp feed pellets
• Specialty Feeds: Custom blending for livestock and poultry nutrition

Process Control & Automation

Advanced Control Systems

• PLC Integration: Programmable logic controller for automated operation
• Recipe Management: Storage and recall of mixing formulations
• Data Logging: Complete batch documentation for quality assurance
• Remote Monitoring: Integration with plant SCADA systems

Quality Assurance Features

• Load Cells: Precise ingredient weighing and monitoring
• Sampling Systems: Representative sampling during mixing operation
• Temperature Monitoring: Process temperature control and recording
• Dust Containment: Enclosed design with dust collection connections

Maintenance & Support

Designed for Reliability

• Easy Access: Large doors and removable panels for maintenance
• Modular Components: Replaceable parts for minimal downtime
• Preventive Maintenance: Scheduled maintenance programs available
• Global Support: Worldwide service network for technical assistance

Performance Guarantee: Each mixer is tested and validated before delivery, with comprehensive documentation including mixing studies, cleaning validation, and performance certification to ensure optimal operation in your specific application.
