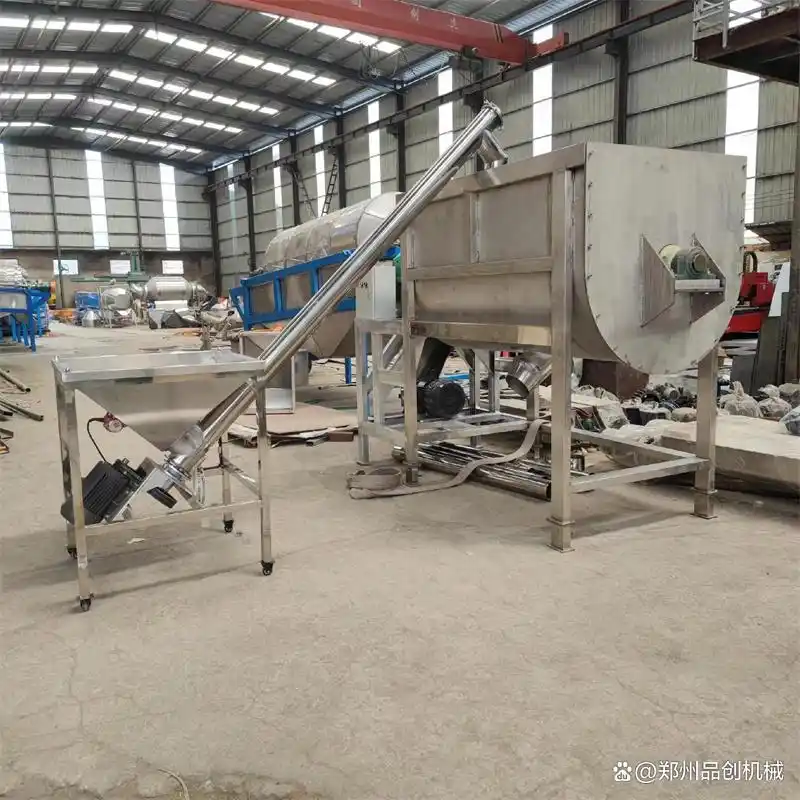

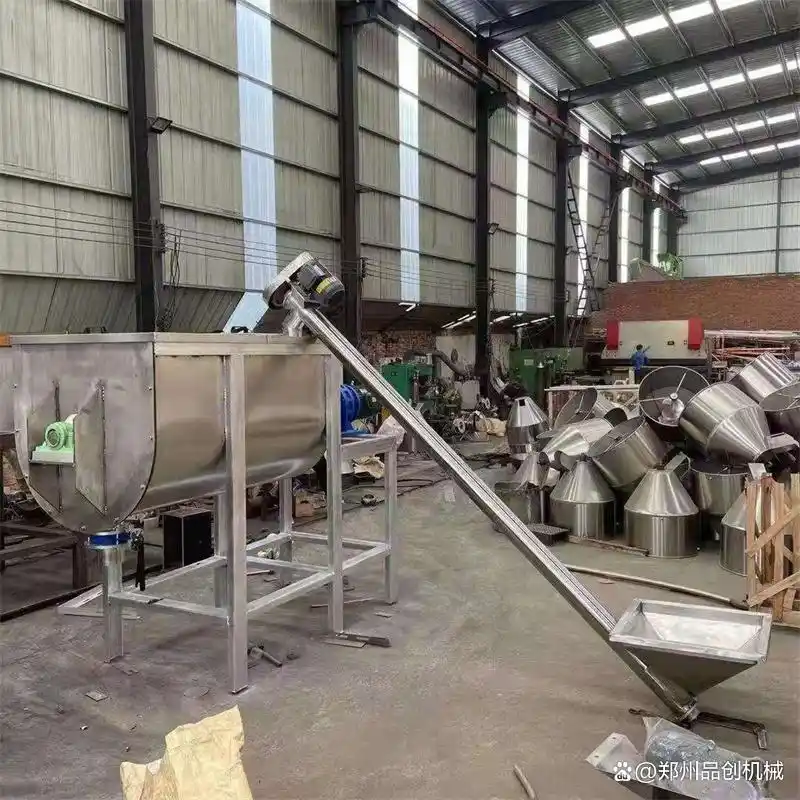

Stainless Steel Food Powder Mixer - High-Efficiency Ribbon Blender Equipment

The Stainless Steel Food Powder Mixer is a sophisticated and versatile ribbon blender designed for optimal material mixing. Featuring a U-shaped design with unique double-ribbon structure, it delivers rapid and uniform mixing of materials, meeting diverse powder and granule mixing requirements across food, chemical, pharmaceutical, and related industries.

Design Excellence

• U-Shaped Mixing Chamber:
  The specially designed U-shaped trough provides optimal material flow patterns, ensuring complete mixing even for materials with different densities and particle sizes. The curved bottom eliminates dead zones and promotes thorough blending.

• Double Ribbon Agitator System:
  Features both outer ribbon (moving materials from ends to center) and inner ribbon (moving materials from center to ends), creating a counter-flow mixing pattern that achieves 95% uniformity in just 3-8 minutes.

• Food-Grade Construction:
  Constructed entirely from 304/316 stainless steel with mirror-polished interior surfaces, meeting FDA, cGMP, and HACCP standards for food, pharmaceutical, and cosmetic applications.

Advanced Mixing Technology

Precision Engineering

• Ribbon Clearance: Optimized 3-6mm clearance between ribbons and trough walls
• Mixing Speed: Variable speed control 20-60 RPM for different materials
• Loading Factor: 40-70% of total volume for optimal mixing efficiency
• Discharge Mechanism: Large butterfly valves for complete, residue-free discharge

Quality Construction Features

• Shaft Sealing: Multi-stage mechanical seals prevent contamination
• Drive System: Heavy-duty gearbox with overload protection
• Surface Finish: Ra ≤ 0.4μm electropolished interior surfaces
• Inspection Ports: Large access doors with safety interlocks

Versatile Applications

Food Industry

• Spice Blending: Uniform distribution of seasonings and flavoring agents
• Flour Mixing: Incorporation of additives, vitamins, and improvers
• Protein Powders: Mixing whey, casein, and nutritional supplements
• Baking Mixes: Combining flour, sugar, leavening agents, and other ingredients

Pharmaceutical Industry

• API Blending: Active pharmaceutical ingredient distribution
• Excipient Mixing: Uniform blending of tablets and capsule components
• Nutritional Products: Vitamin and mineral supplement preparation
• Herbal Medicine: Traditional medicine powder blending

Technical Specifications

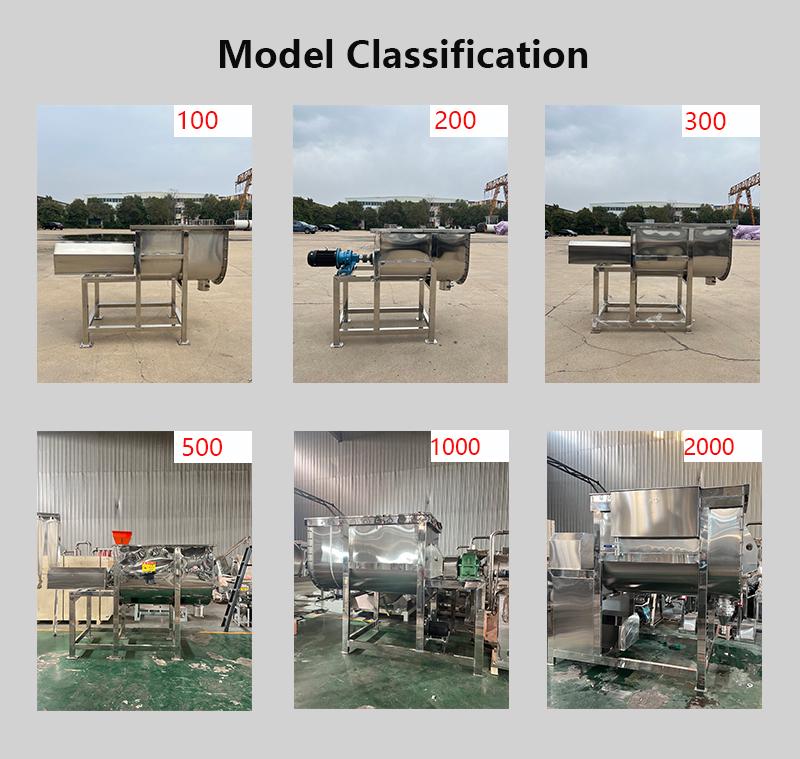

Capacity Range

• Laboratory Scale: 5-50L for R&D and small batch production
• Pilot Scale: 100-500L for process development
• Production Scale: 1000-8000L for commercial manufacturing
• Custom Sizes: Available up to 20,000L for large-scale operations

Performance Parameters

• Mixing Time: 3-8 minutes for 95% uniformity
• Power Consumption: 0.75-45 kW depending on capacity
• Material Compatibility: Powders, granules, flakes, short fibers
• Temperature Range: -20°C to +150°C operation capability

Quality Control & Validation

Testing & Validation

• Mixing Uniformity Tests: Tracer studies to validate blend quality
• Residence Time Distribution: Analysis for optimal mixing parameters
• Cleanability Validation: CIP/SIP protocols for pharmaceutical applications
• Material Flow Studies: CFD analysis for design optimization

Compliance & Certification

• GMP Compliance: Current Good Manufacturing Practice standards
• FDA Approval: Food and Drug Administration requirements
• CE Marking: European Conformity safety standards
• ISO Certification: Quality management system compliance

Automation & Integration

The mixer can be equipped with advanced automation features:

• Recipe Management: Automated ingredient dosing and mixing cycles
• Process Control: PLC-based control with HMI interface
• Data Logging: Complete batch records for traceability
• Integration: Connection to plant-wide manufacturing execution systems

Optional Features include vacuum mixing capability, heating/cooling jackets, spray systems for liquid addition, and explosion-proof designs for hazardous materials.
