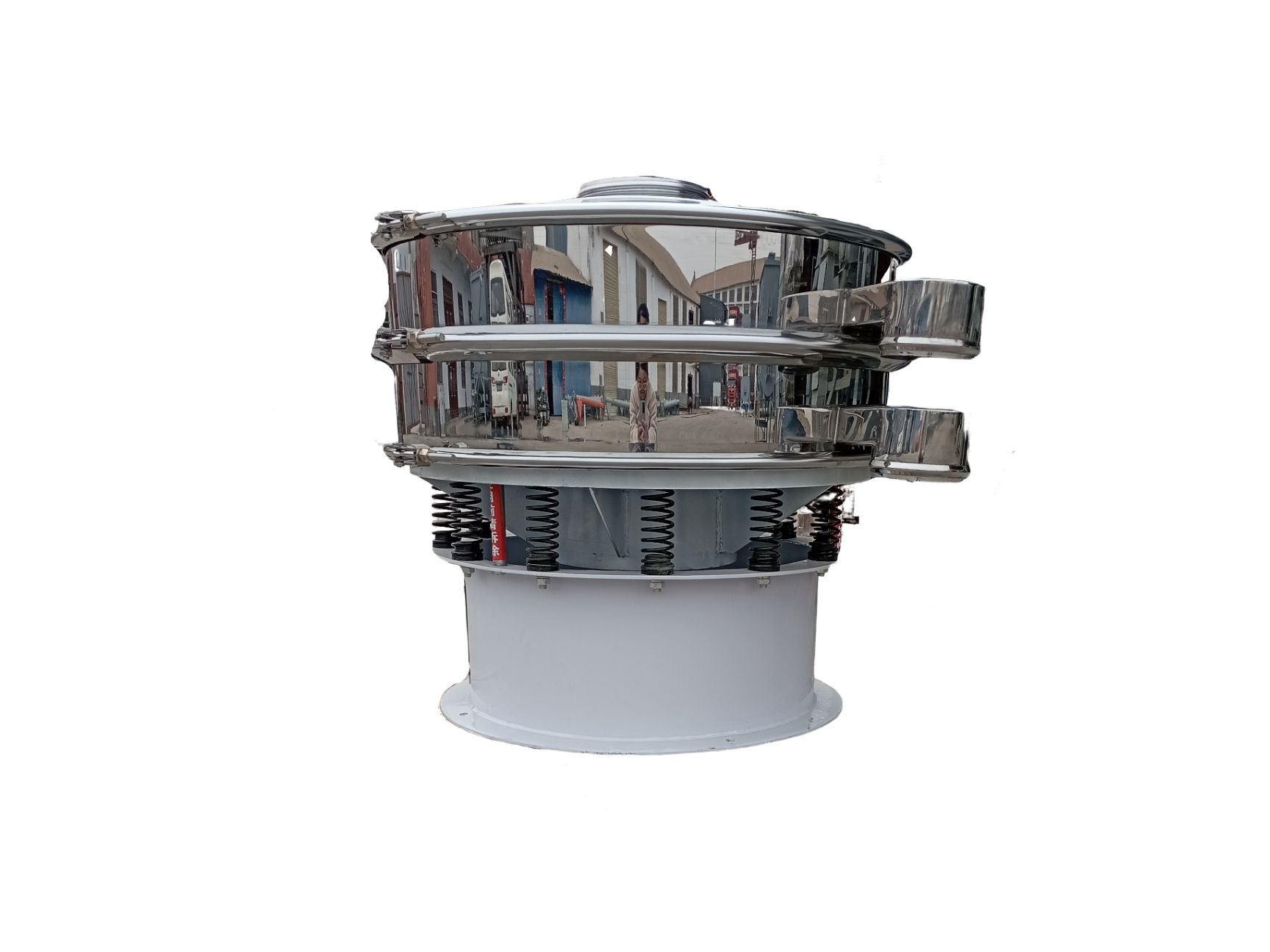

Vibrating Sieve

Precision vibrating sieve for particle grading and fines removal with rapid mesh changes.

Multi-deck screening choices
High-frequency vibration motor
Quick clamp mesh replacement
Food-grade contact surfaces

SEND EMAIL TO US →

Product Introduction

The Vibrating Sieve is a high-efficiency screening equipment designed for precise particle size separation and powder grading applications. Utilizing multi-layer screen technology and high-frequency vibration motors, our vibrating sieves ensure accurate separation of materials based on particle size, making them essential equipment in powder processing production lines.

Key Features

Multi-Deck Screening: Multiple screen layers enable simultaneous grading of different particle sizes
High-Frequency Vibration: Advanced vibration motor provides optimal screening efficiency
Quick Mesh Replacement: Tool-free clamp system allows rapid screen changes
Food-Grade Construction: Stainless steel contact surfaces meet GMP standards
Dust-Tight Operation: Enclosed design prevents material spillage and contamination
Adjustable Amplitude: Variable vibration intensity for different materials

Technical Specifications

Screen Diameter: 400mm - 1500mm
Screen Layers: 1-5 layers (customizable)
Motor Power: 0.25kW - 3.7kW
Vibration Frequency: 1450 r/min
Material: Stainless steel 304/316L
Mesh Size: 5-500 mesh (customizable)

Processing Capacity: 100-3000 kg/h
Screening Accuracy: ≥95%
Amplitude: 3-5mm (adjustable)
Installation: Base/suspension mounting
Control: Manual/automatic operation
Applications: Powder, granules, chemicals

Working Principle

The vibrating sieve operates through high-frequency vibration generated by the vibration motor. Materials are fed onto the top screen deck and move in a circular motion across the screen surface. Particles smaller than the mesh openings pass through to the next level, while oversized particles are discharged from the side outlet. The multi-layer design allows simultaneous separation into multiple size fractions in a single operation, significantly improving screening efficiency and product quality.

1V1 Custom Service

We provide professional 1V1 custom services, designing equipment technology according to customers' specific needs. Our engineering team has rich industry experience and can tailor the most suitable solutions for customers.

Scope of Application

Our vibrating sieve is designed to serve a wide range of industries with diverse material processing needs. We provide comprehensive powder processing solutions that meet the specific requirements of each industry sector.

Company Strength Introduction

Zhengzhou PinChuang Machinery is a professional manufacturer specializing in customized powder processing solutions. With over 10 years of experience, we provide complete production lines, including pulverizers, mixers, elevators, dust collectors, and packaging machines.

Our factory is located in Henan, China, covering more than 3,000 square meters, and equipped with advanced CNC cutting, welding, and polishing facilities. We serve industries such as food processing, herbal medicine, spices, and grain milling with efficient and durable machinery.

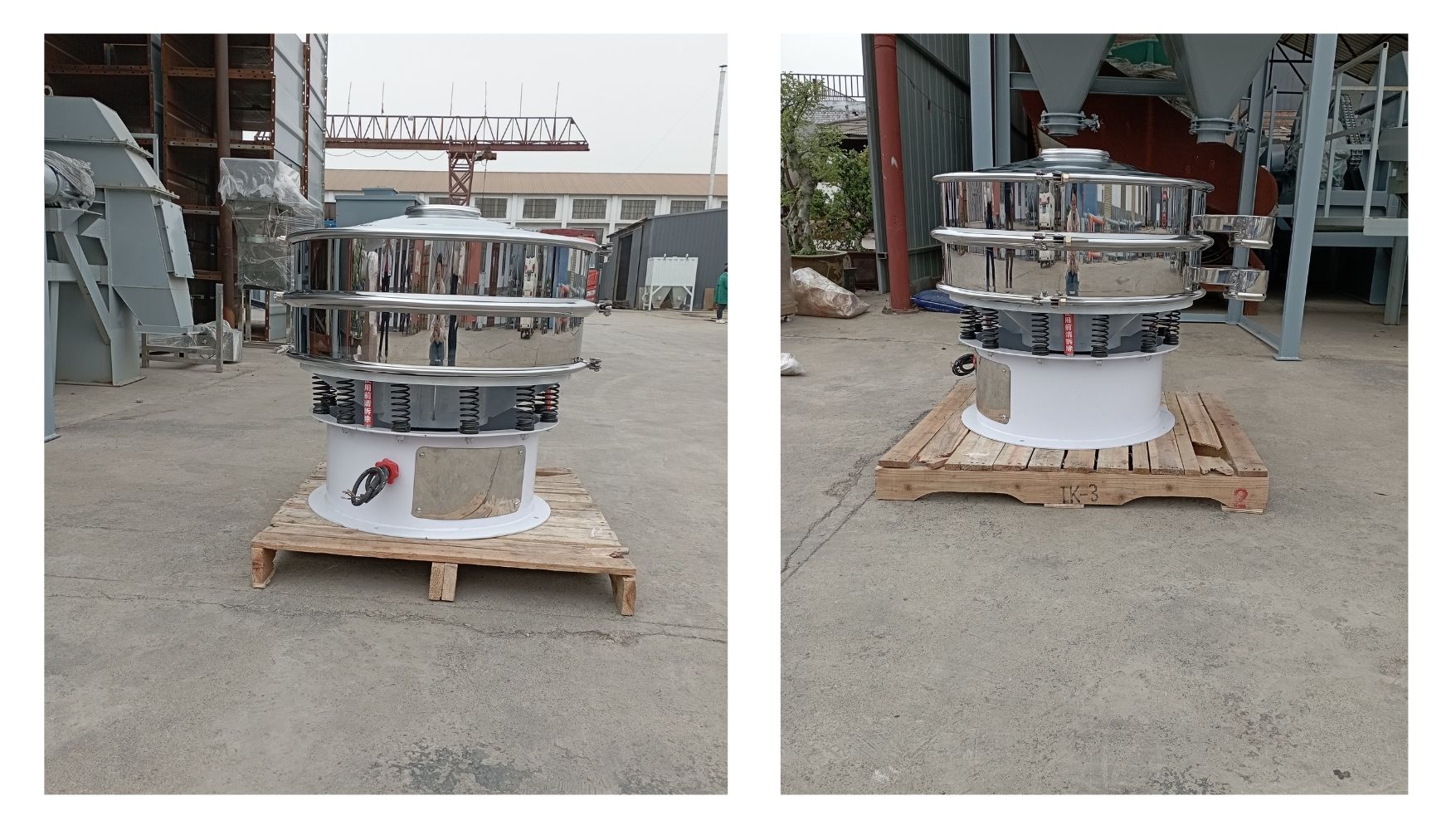

User Feedback Photos

Real feedback from customers on our products and services, demonstrating our professional standards and service quality.

Logistics & Equipment Installation and Debugging

We provide complete logistics and delivery services. Professional teams are responsible for equipment installation and debugging to ensure normal operation of equipment.
